Function 1：
-
Standard Network Tester
-
Function 2：
-
Basic Network Tester
- Overview
- Functions
- Parameters
Multiple functions on one device |
| Flexible and easy-to-change function modesin one single device |
| 1U portable chassis |
| Fanless and noiseless |
|
|
|
|
|
|
| Tests can keep running after disconnecting the client GUI |
| Impairment emulating and traffic generating can run in one device simultaneously |
| 1GE ports support user-defined Preamble and SFD |
| Ports with switch chip can be turned on/off physically by client GUI |
 | Ethertone Network Tester provides wire-speed traffic generation with up to 64 streams per port, supports two test modes of high performance and high port density, and supports RFC2544 testing, which is available in a variety of network equipment test scenarios.
|
| Function Modes | Optional Port Combination | | Standard Network Tester | 4 x 1G RJ45 + 4 x 1G SFP, 4 x 1G RJ45 + 2 x 10G SFP+, 4 x 10G SFP+ | | Basic Network Tester | 16 x 1G RJ45 + 4 x 1G SFP, 16 x 1G RJ45 + 4 x 2.5G SFP, 8 x 1G RJ45 + 4 x 10G SFP+ |
Network Tester |
|
|

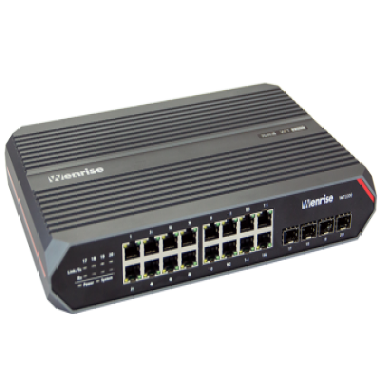

WT2200 has 16 10/100/1000M RJ45 ports and 4 1G/2.5G/10G SFP+ ports. Line rate traffic transmitting and receiving capability. Industry-leading traffic scheduling accuracy. Up to 64 independent streams on a single port. Independent start/stop of each stream on the same port. Support port-based or stream-based speed control. Each stream has 6 VFDs, making it easy to simulate multiple end devices in a single stream. Provide a variety of protocol templates and support customized frames. Provide ultra-short frames and jumbo frames generation. Support user-defined Preamble and SFD. FCS error generation. Test traffic can still be running without client GUI connected, and you can continue to run the tests and check the statistics after reconnecting the client. A single client can manage up to 4 WT2100/WT2200 simultaneously that provides higher port density testing capability. Provide API for test automation.
|
| Product Model | WT2200TB | | Physical Interfaces | 10/100/1000M RJ45 x 16 + 1G/2.5G/10G SFP+ x 4 | | Dimensions | 290mm x 190mm x 44mm | | Power Consumption | 20W | | Operating Temperature | 0 - 45℃ | | Operating Humidity | ≤95%, RH |
| Function Mode | Standard Network Tester | Basic Network Tester | | Port Type | Get the required ports by changing modes | Get the required ports by changing modes16 x 1G RJ45 + 4 x 1G SFP 16 x 1G RJ45 + 4 x 2.5G SFP 12 x 1G RJ45 + 4 x 10G SFP+
| Port Based Scheduler | Up to 64 streams per port | Up to 24 streams per port | Stream Based Scheduler | Up to 64 streams per port | Up to 24 streams per port | Protocol Type of Frames | EthernetII, IP, APR, UDP, TCP, VLAN, QinQ, Custom | EthernetII, IP, APR, UDP, VLAN, QinQ, Custom | Variable Field Data (VFD) | Each stream has 6 VFDs and supports the modification of Source/Destination MAC, Source/Destination IP, and VLAN ID. | - | Port Based Statistics | ·Transmitted packets, received packets, transmitted frames per second (fps), received frames per second (fps), transmitted bits persecond (bps), received bits per second (bps), received FCS error packets ·Received filtered packets, received filtered packets rate (fps) | ·Transmitted packets, received packets, transmitted frames per second (fps), received frames per second (fps), transmitted bits persecond (bps), received bits per second (bps), received FCS error packets | Stream Based Statistics | ·Transmitted packets, received packets, transmitted frames per second (fps), received frames per second (fps), transmitted bits per second (bps), received bits per second (bps), received FCS error packets, Min Latency, Average Latency, Max Latency, Payload Checksum Error Packets ·Real-time packet loss, real-time packet loss rate, disordered packets, Min jitter, Avg jitter, Max jitter | ·Transmitted packets, received packets, transmitted frames per second (fps), received frames per second (fps), transmitted bits per second (bps), received bits per second (bps), received FCS error packets, Min Latency, Average Latency, Max Latency, Payload Checksum Error Packets | Payload Checksum | Support stream-based payload checksum error statistics | | Filtered Statistics | Support port-based packet filtering statistics | - | Control of Streams | Each stream can be started and stopped independently | | Transmit Control | continuous, burst (once or multiple), time | Frame Length Type | fixed, random, increase | Frame Length Range | 1GE Ports: 46-16383 Bytes 10GE Ports: 60-16383 Bytes | | Payload Type | 1GE Ports: fixed, random, increase 10GE Ports: fixed, random | fixed, random | Error Packet Generation | Stream-based FCS error packet generation | FCS Error Statistics | Port-based FCS error packet statistics | Address Learning | Automatic generation of Layer 2 and Layer 3 address learning packets according to traffic settings | | Port Switches | ·Port 1-8 have individual switch chip for each port ·Each port with switch can control the physical on/off via client ·Automatic cyclic switch of ports according to settings and generate port status change logs | User-defined Preamble & SFD | 1GE ports support user-defined Preamble and SFD | | Offline Running | Test traffic can still be running without client GUI connected, configurations and statistics will be kept intact after reconnection | | Multiple Chassis Operation | A single client can operate four chassis simultaneously. | | Multiple Clients Operation | Multiple users can use the same chassis simultaneously. | | Test Suite | RFC2544 | | Others | GUI client API for test automation
|
|
|
