The redundant link tester provides automatic link on-off capability and accurate switching time measurement capability, which can realize automatic alternating switching of primary and backup links, which can easily verify the switching performance of primary and backup links, and provide sufficient basis for verifying and improving redundant network systems.

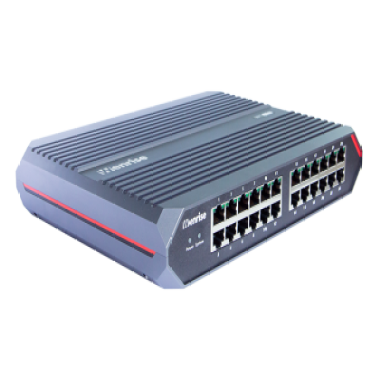

Redundant Link Tester
Connected in the network system, the on/off of the Ethernet link can be controlled in real time through software to simulate the physical failure of the communication link.
For redundant network systems with primary and backup links, the switching time of the primary and backup links can be accurately measured.
It provides automatic alternating switching of primary and backup links, which can realize the automatic cyclic on-off test of multiple primary and backup links.
It can be connected to the network system for a long time, and the data is directly transmitted by default, which does not affect the normal operation of the original system.
It is widely used in test systems and debugging systems carried over Ethernet.
Product model
WT2100L
Physical Interfaces
10/100/1000M RJ45 x 24
Dimensions
259mm x 183.6mm x 44mm
Power Consumption
20W
Operating Temperature
0 - 45℃
Operating Humidity
≤95%, RH
Functional Mode
Redundant Link Tester
Link Resources
A single equipment supports two sets (4 links) of primary/backup links, and a single client supports up to 4 equipment operating at the same time
Functional Mode
Changing time measurement of primary and backup link
Redundant links cycle on and off
Accuracy of link switching time measurement
20ns
Set conditions to determine whether the link is connected or not
Any message/non-broadcast message/custom condition
On-off Switching Mode
Manually perform single-link switchover
Single-link automatic cyclic switchover
The primary and backup links are switched alternately in cycles
