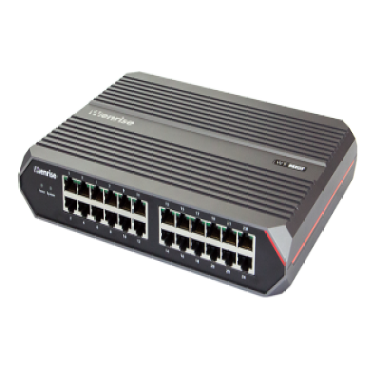

WT2100S Impairment Emulator

• Provides 8-port 4-link bidirectional simulation function.

• It has a wide range of impairment functions and can accurately emulate impairment at wire-speed stream.

• Jitter latency can be realized by generating a latency for all packets or for specific packets according to specific conditions.

• It can cause impairment such as discarding, duplication, reorder, and modification to all packets or specific packets according to specific conditions.

• Packets with specific content can be inserted at a specific rate, and ultra-long frames, ultra-short frames, and FCS error frames can be constructed and inserted.

• The available bandwidth can be limited according to the specific ratio to support bandwidth jitter.

• BER Simulation can be generated at a specific ratio.

• One chassis supports a maximum of 4 damaged links (Bidirectional independent setting)

• Impairments can be set independently for each channel of the link and can be started and stopped separately or concurrently

• Support to filter FCS error frames on the line

·Range of values: 0.01ms-120s

·Max. delay at full line rate: 40s at 100Mbps, 4s at 1000Mbps

·Range of values: 0.01ms-120s

·Jitter period: 1ms-2500s

·Jitter model: Incremental / decremental / convergent / divergent / sinusoidal / dual channel / custom

·Range of values: 0.001-100%

·Jitter model: Incremental / decremental / convergent / divergent / sinusoidal / dual channel / custom

·Range of values: 0.001-100%

·Jitter model: Incremental / decremental / convergent / divergent / sinusoidal / dual channel / custom

Background Traffic

·Protocols: Ethernet, IP, UDP

·Frame length type: Fixed, Random

·Frame length range:19-16383 Bytes

·Payload type: Fixed, Random

·Frame error creation: Support to generate FCS error frames

Template Based Modifications

Customized Modifications

·Specify the location and content of the byte to be modified

·Modify up ot 12 independent bytes with per packet. Each byte can be modified by bits.

Bandwidth Control

·Range of variation: 0.001-100%

·Period of variation: 1ms-2500s

Impairment With Packet Filters

·Template: src/dst MAC, frame type, src/dst IP, UDP src/dst port number, TCP src/dst port number, VLAN ID, VLAN priority (QinQ supported), MPLS label, MPLS TC

·User-defined: Specify the location and content of the byte to be matched

·Range matching: Packet Loss can match specified bytes in a range of values

Channel-based

Impairment Statistics

Number of error bits, packet number of latency, loss, duplication, misorder, background traffic, modification

Channel-based Traffic Statistics

·Number of rx packets, number of tx packets, rx rate (fps, bps, %), tx rate (fps, bps,%), number of received FCS error packets

·Channel-based graphical statistics of packet rate

• GUI client

• API for test automation
