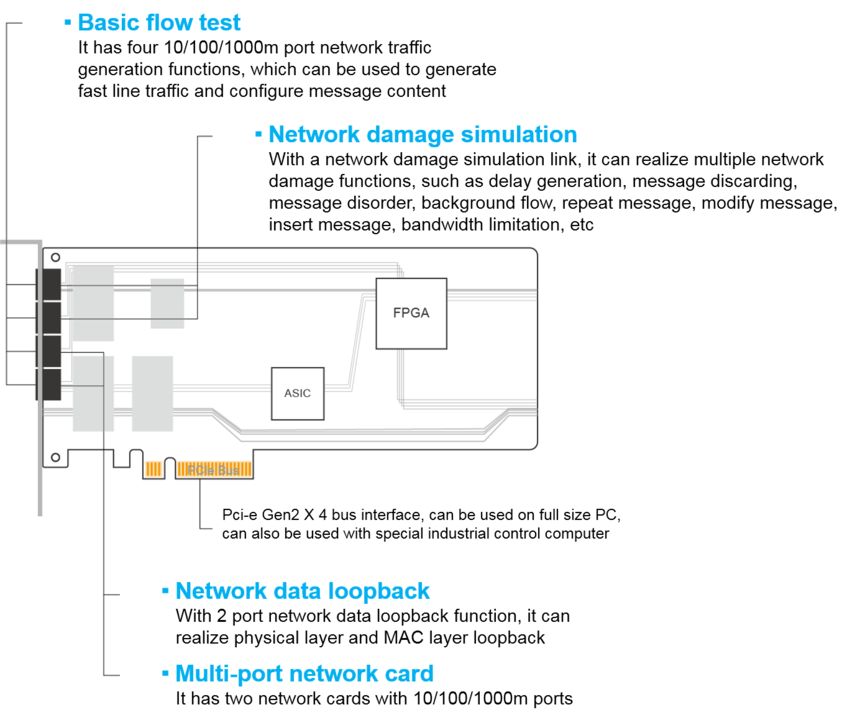

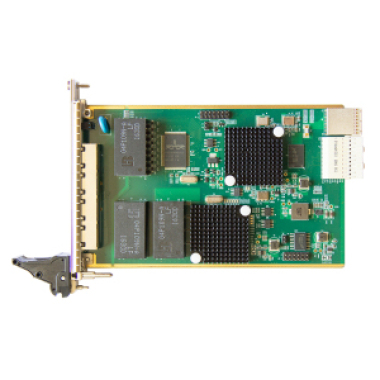

WN504 Network Impairment Test Card

• Provides 2-port 1-link bidirectional emulation function.

• It has a wide range of impairment functions and can accurately

  emulate impairment at linear velocity stream.

• Delay transmission of all packets or specific packets can achieve

  Jitter Buffer.

• All messages or specific messages are discarded, duplicated,

  modified, reordered according to the set proportion.

• Messages with specific content can be inserted at a set rate, and

  ultra-long frames, ultra-short frames, and FCS error frames can

  be constructed and inserted.

• Background data traffic for specific content can be inserted at a

  set rate.

• Link bandwidth can be limited by a set ratio.

• BER Simulation can be generated at a set ratio.




Basic traffic testing

• 4 × 10/100/1000M RJ45 ports are available to generate wire-

  speed traffic.

• Can change the speed based on ports.

• Can set the source MAC address, destination MAC address, frame

  length, and payload content.

• Traffic can be counted based on ports.

• Statistics include the number of packets received, the number of

  packets sent, the receive rate, the transmit rate, and the FCS error

  packet.

Loopback and NIC functions

P3 and P4 ports can be used as physical layer/MAC layer loopback

P3 and P4 ports can be used as Gigabit network card interfaces

       The P3 and P4 ports of the WN504 have Ethernet loopback function,

which can provide physical layer data loopback and MAC layer data

loopback function, which can be used as an Ethernet loopback alone,

or can be combined with the impairment and traffic of the test card to

achieve multi-scenario integration testing. At the same time, P3 and

P4 ports can also be used as Gigabit network card adapter ports, thus

bringing more convenience to software and hardware system debugging.

Operating temperature

Operating humidity

A single test card supports one impairment link, and a single client can support up to three test cards to operate at the

same time

·100Mbps rate maximum support 10s, 1000Mbps rate

 maximum support 2s

·Support latency jitter

·Support random packet loss, which can produce packet loss

 according to a fixed proportion or jitter ratio

·Support cyclic packet loss, you can specify the cycle period

 and the number of packet loss

·Can select specific packets according to the matching

 conditions to generate packet loss

·Support fixed ratio or jitter ratio to generate duplicate

 packets

·Duplicate packets can be generated based on matching

 conditions

·Generate reorder packets according to the set ratio

·Randomly generate reorder packets according to the set

 latency range

·Can set the message content and insert specific messages at

 a specified rate

·The message length can be set to random length or fixed

 length, and ultra-short frames/ultra-long frames can be set

 under fixed length (message length range 19-16k bytes)

·The payload content of the message can be set to 00, 5A, FF

 and random 4 types

·FCS error frames can be constructed

·Can modify all messages or specified messages according to

 the set ratio

·Can modify the message content according to fixed

 templates and custom templates

·Support generating background traffic based on port rate

·Provides a traffic generation template to set the packet

 content of background traffic

·Traffic bandwidth can be precisely limited according to the

 set ratio

·Ratio range 0.01%-100%

·Errors can be constructed accurately according to the

 specified ratio

·Bit error rate setting range 10-2-10-10

·Provides real-time statistics on the number of packets such as

 latency, packet loss, duplication, reorder, packet insertion,

 and modification

·Provides statistics on sending and receiving packets based on

 link direction (including background traffic packets)

·4 ports 10/100/1000M stream can be generated at wire-speed

·Can change the speed based on ports

·Can set the source MAC address, destination MAC address,

 frame length, and payload content

·Traffic can be counted based on ports

·Statistics include the number of packets received, the number

 of packets sent, the receive rate, the transmit rate, and the

 FCS error packet

·With 2-port network traffic loopback function

·Support physical layer loopback
