Ethertone WT2200

Port type:
RJ45/SFP+
Number of ports:
16+4
Function 1:
Standard Network Tester
Function 2:
Basic Network Tester
Function 3:
Impairment Emulator
  • Overview
  • Functions
  • Parameters

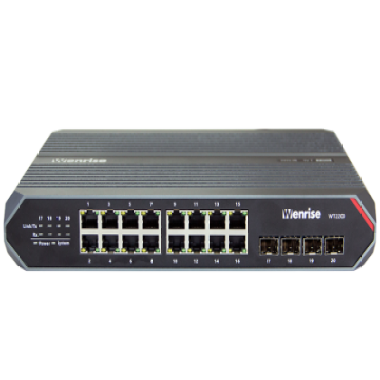

Ethertone WT2200 is a multi-functional instrument that integrates Ethernet Impairment Emulator and Network Tester.


Product highlights

Multiple functions on one device


Flexible and easy-to-change function modes in one single device


1U portable chassis


Fanless and noiseless








Tests can keep running after disconnecting the client GUI


Impairment emulating and network tester can run in one device at the same time


1GE ports support user-defined Preamble and SFD


Ports with switch chip can be turned on/off physically by GUI




  • The Ethernet Impairment Emulator combines comprehensive network emulation to enable you to generate impairments in an accurate and repeatable way that occur in a real WAN including latency, misorder packets, loss of packets, duplicated packets, errored and modified packets, background traffic and bandwidth control.

  • Ethertone Network Tester provides wire-speed traffic generation with up to 64 streams per port, supports two test modes of high performance and high port density, and supports RFC2544 testing, which is available in a variety of network equipment test scenarios.


Function ModesOptional Port Combination
Impairment Emulator

4 x 1G RJ45 + 4 x 1G SFP,

2 x 1G RJ45 + 2 x 10G SFP+

Standard Network Tester

4 x 1G RJ45 + 4 x 1G SFP,

4 x 1G RJ45 + 2 x 10G SFP+,

4 x 10G SFP+

Basic Network Tester

16 x 1G RJ45 + 4 x 1G SFP,

16 x 1G RJ45 + 4 x 2.5G SFP,

12 x 1G RJ45 + 4 x 10G SFP+

Impairment Emulator + Standard Network Tester

2 x 1G RJ45 + 2 x 1G SFP impairment emulator + 2 x 1G RJ45 + 2 x 1G SFP standard network tester



Impairment Emulator




  • With 1G/2.5G/10G port bidirectional impairment emulation function.

  • It has a wide range of impairment functions and can accurately emulate impairment at linear velocity stream.

  • Jitter latency can be realized by generating a latency for all packets or for specific

    packets according to specific conditions.

  • It can cause impairment such as discarding, duplication, reorder, and modification to all packets or specific packets according to specific conditions.

  • Packets with specific content can be inserted at a specific rate, and ultra-long frames, ultra-short frames, and FCS error frames can be constructed and inserted.

  • The available bandwidth can be limited according to the specific ratio to support

    bandwidth jitter.

  • BER Simulation can be generated at a specific ratio.


Network Tester




  • WT2200 has 16 10/100/1000M RJ45 ports and 4 1G/2.5G/10G SFP+ ports.

  • Line rate traffic transmitting and receiving capability.

  • Industry-leading traffic scheduling accuracy.

  • Up to 64 independent streams on a single port.

  • Independent start/stop of each stream on the same port.

  • Support port-based or stream-based speed control.

  • Each stream has 6 VFDs, making it easy to simulate multiple end devices in a single stream.

  • Provide a variety of protocol templates and support customized frames.

  • Provide ultra-short frames and jumbo frames generation.

  • Support user-defined Preamble and SFD.

  • FCS error generation.

  • Test traffic can still be running without client GUI connected, and you can continue to run the tests and check the statistics after reconnecting the client.

  • A single client can manage up to 4 WT2100/WT2200 at the same time that provides higher port density testing capability.

  • Provide API for test automation.







Product modelWT2200
Physical Interfaces10/100/1000M RJ45 x 16 +
1G/10G SFP+ x 4
Dimensions290mm x 190mm x 44mm
Power Consumption20W
Operating Temperature0 - 45℃
Operating Humidity≤95%, RH





Function ModeEthernet Impairment Emulator
Number of Links

Single device provides 2 links of 1G RJ45 + 2 links of 1G SFP

Link Operation
  • Impairments can be set independently for each channel of the link and can be started and stopped separately or concurrently

  • Support to filter FCS error frames on the line

LatencyFixed Latency

·Range of values: 0.01ms-120s

·Max. delay at full line rate: 40s at 100Mbps, 4s at 1000Mbps

Variable Latency

·Range of values: 0.01ms-120s

·Jitter period: 1ms-2500s

·Jitter model: Incremental / decremental / convergent / divergent / sinusoidal / dual channel / custom

Packet LossFixed RateRange of values: 0.001-100%
Variable Rate

·Range of values: 0.001-100%

·Jitter model: Incremental / decremental / convergent / divergent / sinusoidal / dual channel / custom

Cyclic LossRange: 1-131071
DuplicationFixed RateRange of values: 0.001-100%
Variable Rate

·Range of values: 0.001-100%

·Jitter model: Incremental / decremental / convergent / divergent / sinusoidal / dual channel / custom

MisorderRange of Values0.001-100%
Range of Delay0.01ms-120s

Background Traffic

Range of Line Rate0.001-100%
Settable Frame Content

·Protocols: Ethernet, IP, UDP

·Frame length type: Fixed, Random

·Frame length range:19-16383 Bytes

·Payload type: Fixed, Random

·Frame error creation: Support to generate FCS error frames

ModificationRange of Values0.001-100%

Template Based

Modifications

EthernetII, IP, UDP, TCP, VLAN (Support QinQ), MPLS

Customized Modifications

·Specify the location and content of the byte to be modified

·Modify up ot 12 independent bytes with per packet. Each byte can be modified by bits.

Bandwidth Control

Fixed BandwidthRange: 0.001-100%
Variable Bandwidth

·Range of variation: 0.001-100%

·Period of variation: 1ms-2500s

BER SimulationRange of BER10-2-10-14
Packet Filter

Impairment With Packet Filters

Latency, Packet Loss, Duplication, Misorder, Modification
Matching methods

·Template: src/dst MAC, frame type, src/dst IP, UDP src/dst port number, TCP src/dst port number, VLAN ID, VLAN priority (QinQ supported), MPLS label, MPLS TC

·User-defined: Specify the location and content of the byte to be matched

·Range matching: Packet Loss can match specified bytes in a range of values

Statistics

Channel-based Impairment Statistics

Number of error bits, packet count of latency, loss, duplication, Misorder, background traffic, modification

Channel-based Traffic Statistics

·Number of rx packets, number of tx packets, rx rate (fps, bps, %), tx rate (fps, bps,%), number of received FCS error packets

·Channel-based graphical statistics of packet rate

Multiple Chassis OperationA single client can operate four chassis simultaneously.
Multiple Clients OperationMultiple users can use the same chassis simultaneously.
Others
  • GUI client

  • API for test automation



Function ModeStandard Network TesterBasic Network Tester
Port TypeGet the required ports by changingmodes
  • 4 x 1G RJ45 + 4 x 1G SFP

  • 4 x 1G RJ45 + 2 x 10G SFP+

  • 4x10G SFP+

Get the required ports by changingmodes
  • 16 x 1G RJ45 + 4 x 1G SFP

  • 16 x 1G RJ45 + 4 x 2.5G SFP

  • 12 x 1G RJ45 + 4 x 10G SFP+

Load on Port

Up to 64 streams per portUp to 24 streams per port

Load on Stream

Up to 64 streams per portUp to 24 streams per port

Protocol Type of Frames

EthernetII, IP, APR, UDP, TCP, VLAN, QinQ, CustomEthernetII, IP, APR, UDP, VLAN, QinQ, Custom

Variable Field Data (VFD)

Each stream has 6 VFDs and supports the modification of Source/Destination MAC, Source/Destination IP and VLAN ID.

-

Port Based Statistics

·Transmitted packets, received packets, transmitted frames per second (fps), received frames per second (fps), transmitted bits persecond (bps), received bits per second (bps), received FCS error packets

·Received filtered packets, received filtered packets rate (fps)

·Transmitted packets, received packets, transmitted frames per second (fps), received frames per second (fps), transmitted bits persecond (bps), received bits per second (bps), received FCS error packets

Stream Based Statistics

·Transmitted packets, received packets, transmitted frames per second (fps), receivedframes per second (fps), transmitted bits persecond (bps), received bits per second (bps), received FCS error packets, Min Latency, Average Latency, Max Latency, Payload Checksum Error Packets

·Real-time packet loss, real-time packet lossrate, disordered packets, Min jitter, Avg jitter, Max jitter

·Transmitted packets, received packets, transmitted frames per second (fps), receivedframes per second (fps), transmitted bits persecond (bps), received bits per second (bps),received FCS error packets, Min Latency, Average Latency, Max Latency, Payload Checksum Error Packets

Payload Checksum

Support stream-based payload checksum error statistics
Filtered statisticsSupport port-based packet filtering statistics-

Control of Streams

Each stream can be started and stopped independently
Transmit Controlcontinuous, burst (once or multiple), time

Frame Length Type

fixed, random, increase

Frame Length Range

1GE/2.5GE Ports: 46-16383 Bytes

10GE Ports: 60-16383 Bytes

Payload Type

1GE/2.5GE Ports: fixed, random, increase

10GE Ports: fixed, random

fixed, random

Error Packet Generation

Stream-based FCS error packet generation

FCS Error Statistics

Port-based FCS error packet statistics

Address Learning

Automatic generation of Layer 2 and Layer 3 address learning packets according to traffic settings
Port Switches

·Port 1-8 have individual switch chip for each port

·Each port with switch can control the physical on/off via client

·Automatic cyclic switch of ports according to settings and generate port status change logs

User-defined Preamble & SFD

1GE ports support user-defined Preamble and SFD
Offline Running

Test traffic can still be running without client GUI connected, configurations and statistics will be kept intact after reconnection

Multiple Chassis OperationA single client can manage up to 4 Chassis at the same time
Multiple Clients OperationMultiple users can use the same chassis simultaneously.
Test SuiteRFC2544
Others
  • GUI client

  • API for test automation
