WN204 high speed switching redundant network card

Product model:
WN204
Port type:
RJ45 10/100/1000M
Port number:
2 master + 2prepare
Functional description:
Automatic switching between main and standby links
Switch time:
≤1ms
Bus type:
PCI-E Gen2 ×4
  • Overview
  • Parameters
  • Applications


Nowadays, network technology has penetrated into every corner of the world, from various industries to the daily life of the public. The network has long been transformed from a simple platform for carrying information to a platform for providing critical services and public services that need to be online at any time.Because of this, the robustness and reliability of network infrastructure has never been more important.


In order to ensure the reliability of network, it is a common technology to construct redundant network system by using redundant backup technology in network design.The experience of redundant networks is that users barely notice when a network link breaks or changes.For the delay sensitive service, the switching time of the main and backup links is directly related to the availability of the system.

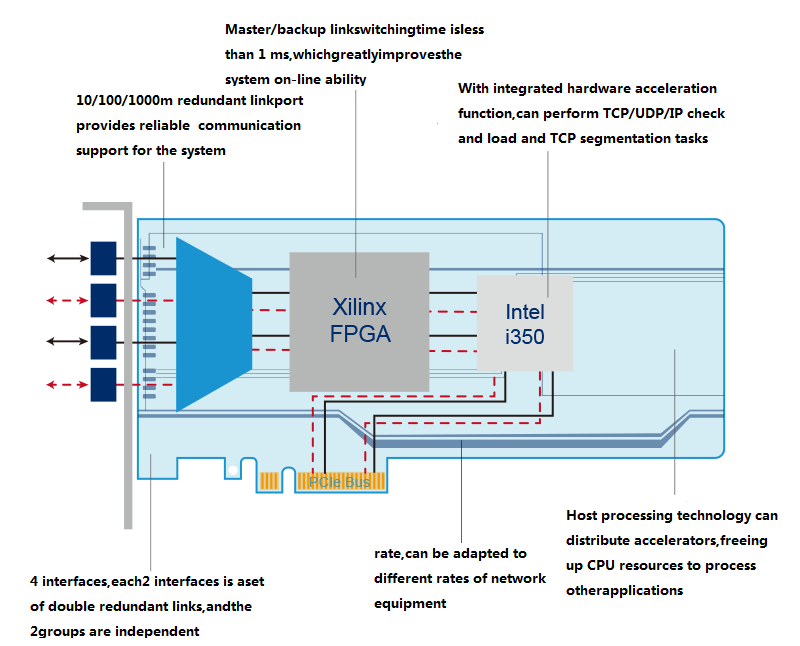

WN204 high speed switching redundant network card is a 4 port gigabit network interface card with redundant link high speed switching function.In addition to providing high-performance gigabit network interfaces for desktop, server, and other network devices, WN204 innovatively provides independent redundant links, and has the high-speed automatic switching ability of master/backup links, switching time delay 1sm, making the network truly capable of "always online" at the level of link connectivity.






Product model

WN204

Port type

4 × RJ45 10/100/1000M self-adaptive

Type of transmission medium

3/4/5 class UTP

The bus type

PCI-E Gen2 ×4

Number of   main and standby links

2 groups, each group 1 main +1 backup

Switching time   between main and standby links

≤ 1ms

Size

168mm × 91mm

The most powerful

15W

Working temperature

0 - 35℃

Working humidity

85%,relative humidity





The other

Support system Windows Server 2012,Windows 8,Windows Server 2008 R2, Windows 7,Windows   Server 2008,Windows Vista,Windows Server 2003 R2, Windows Server2003,Windows XP Professional,Linux Stable Kernel version 3.x, 2.6,x,Red HatEnterprise Linux 56SUSE Linux Enterprise Server 1011, FreeBSD   9,VMwareESX/ESXi



  • Contains two independent double redundant links, each with a 1+1 hot backup;

  • In case of link failure, the board card will be automatically switched without the participation of the host;

  • Master/standby link switching time is no more than 1 ms;

  • Host side interface is standard network card interface;

  • Two sets of double redundant links are independent of each other and do not interfere with each other;

  • PCIE Gen2 x4 interface with host;

  • Widely applicable to a variety of servers, computers, industrial computer and custom equipment;

  • Support common operating systems such as Windows and Linux;

  • Two gigabit Ethernet interfaces are reserved between the host and the network card for data encryption or function expansion;

  • Customized functions can be developed according to customer requirements
